Temperature control panel for cold rooms SmartSet MAX Full is the integrated solution for cold rooms, manadging defrost, controlling lighting and ventilation. In this version, the product is supplied with pre-installed contactors, fuse protection, and thermal overload relays. The customer only needs to specify the voltage, number of phases, and compressor power rating, and we […]
User guide
Cooling control for cold rooms
Built-in voltage monitor
Options for defrost control
Fan control for cold rooms
The SmartSet MAX range consists of control panels for cold rooms, designed with an exclusive layout that allows the installation of several auxiliary components, such as contactors and circuit breakers, ensuring complete cold room control in a single unit. This is the full version, supplied with pre-installed components including contactors, fuses, and thermal overload relays. Simply choose the voltage (220 V or 380 V), the number of phases, and the compressor power rating — up to 5 HP — and the panel is ready for operation.
In addition, the SmartSet MAX features voltage monitoring (under- and overvoltage), phase asymmetry detection, phase reversal protection, phase loss protection, and an audible alarm. It controls refrigeration and fan operation, as well as electric or hot gas defrost management. Its 30 mm display provides long-distance visibility, with control keys integrated into the front panel.
For applications requiring greater customization, the SmartSet MAX Basic version is also available. This version does not include components such as contactors, fuses, or thermal overload relays, allowing the customer to assemble the control panel according to their specific requirements.
Power supply:
(220 or 380) Vac;
Single-phase or three-phase;
(50 or 60) Hz
Maximum power consumption: 4 VA;
Relay outputs:
Refrigeration 1: 5 A / 250 Vac;
Refrigeration 2: 5 A / 250 Vac;
Defrost: 5 A / 250 Vac;
Fan: 10 A / 250 Vac;
Note: The total relay current must not exceed 18 A;
Measurement range: (-50 to +100) °C;
Resolution:
0.1 °C from (-10 to +100) °C;
1.0 °C from (-50 to -10) °C;
Operating conditions: (0 to 40) °C and (10 to 90) % RH (non-condensing);
Dimensions: (300 × 317 × 147) mm;
Sensors:
NTC: Ø6 mm / L = 15 mm (sensor), standard cable length 1.5 m.
Temperature control panel for cold rooms
SmartSet MAX Full is the integrated solution for cold rooms, manadging defrost, controlling lighting and ventilation. In this version, the product is supplied with pre-installed contactors, fuse protection, and thermal overload relays. The customer only needs to specify the voltage, number of phases, and compressor power rating, and we assemble the control panel accordingly.

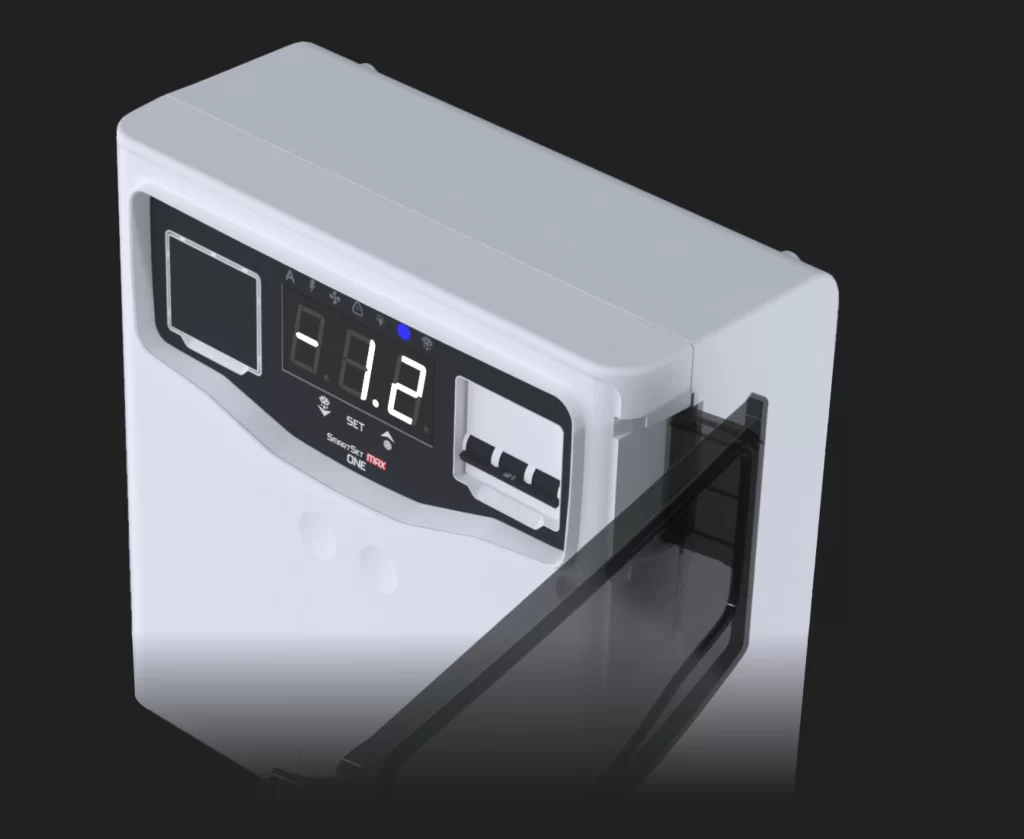

Main circuit breaker
SmartSet MAX is equiped with a main thermal-magnetic circuit breaker, ensuring practical and safe using. Its easy access cover makes for quick handling and keeps the panel protected.
Open door sensor
“Did I close the cold room’s door?” With SmartSet MAX, that’s a question you won’t ask yourself anymore. If the door is left open for too long you will be warned by a sound alarm, promoting energy saving and avoiding spoiled goods.

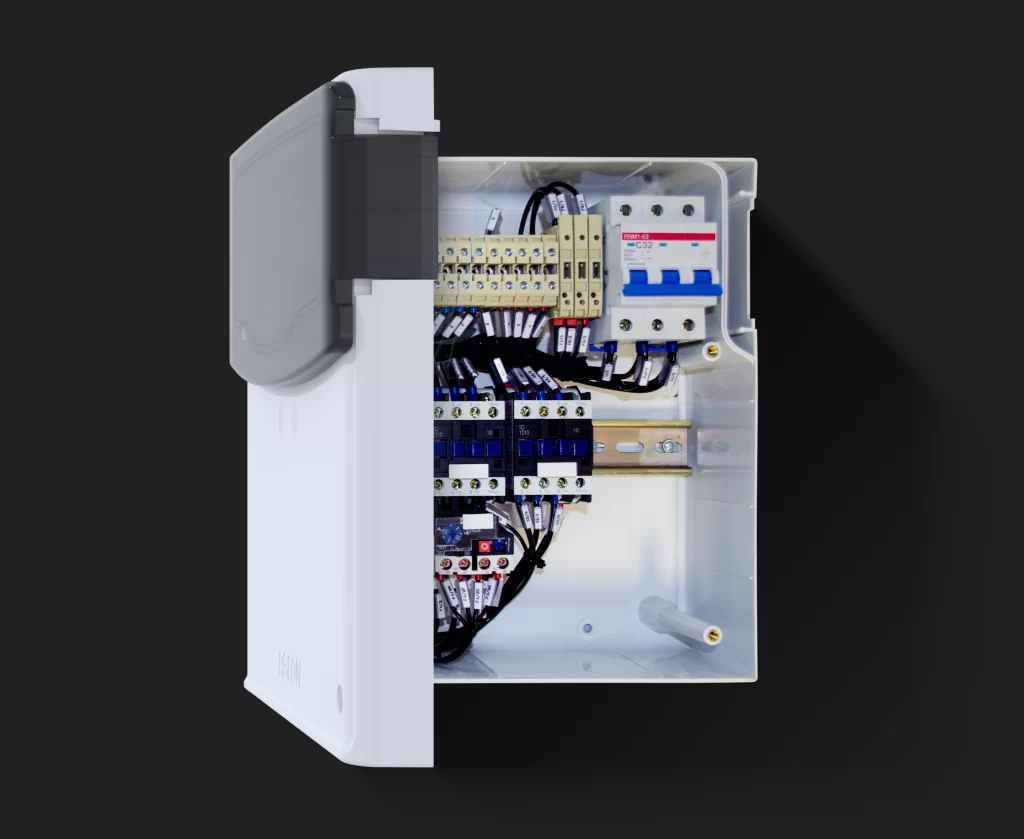

Auxiliary components installed in the control panel
SmartSet MAX features contactors for compressor and electric defrost control, a thermal overload relay for compressor overcurrent protection, fuses, and an integrated voltage monitoring relay.
Defrost control
SmartSet MAX offers programmable defrost, adapting to your application requirements. Choose between natural or forced defrost (electric or hot gas) and set the most convenient schedule, ensuring maximum efficiency and preventing unwanted interruptions.
Ventilation control
Configure how SmartSet MAX controls the fans in your cold room. Define when they should operate to ensure maximum efficiency for each application.
Audible and visual alarms
When errors or inadaquate temperature fluctuation occurs, a sound and a visual alarm are activated.
Frequently asked questions
The SmartSet MAX is a control panel developed for complete cold room management, for both frozen and chilled applications. It allows control of essential functions such as refrigeration, ventilation, and defrost, ensuring system efficiency and safety.
The SmartSet MAX includes a range of protection features to ensure system safety and stable operation, including:
- Overvoltage protection;
- Undervoltage protection;
- Phase loss protection;
- Phase asymmetry protection;
- Phase sequence protection.
The SmartSet MAX offers:
- Refrigeration control;
- Fan management;
- Defrost control, either electric or hot gas;
- Integrated voltage monitoring, protecting against power supply fluctuations;
- Ease of use, with a front panel and quick-access keys for the main functions.
On the SmartSet MAX, the voltage protection parameters are configured through the AC settings, such as AC1 (overvoltage), AC2 (undervoltage), and other AC voltage parameters. To adjust them, simply access the configuration menu and define the voltage limits according to the system’s safe operating range. These settings help protect the equipment against power supply fluctuations.
