SmartSet ONE S106CK WEB
Control panel for cold rooms SmartSet ONE S106CK WEB is a complete solution for cold rooms, providing precise temperature control, as well as defrost and ventilation management. Featuring audible and visual alarms and internal space for additional protection devices, such as circuit breakers and thermal overload relays, it ensures the safety and efficiency of your […]
User guide
Cooling control for cold rooms
Built-in voltage monitor
Options for defrost control
Fan control for cold rooms
The SmartSet ONE S106CK WEB temperature controller allows cold room control and internet-based temperature monitoring through the Ageon monitoring system (WebFi or WebFi Pro). It features two sensors (defrost and ambient), one 30 A relay output for refrigeration, and three additional relay outputs for defrost, fans, and lighting.
The controller includes a real-time clock for scheduled defrost activation and keys integrated into the front panel for easier cold room operation. It also features a 30 mm display and ample internal space for the installation of auxiliary components.
Power supply: 220 V (± 20 %), (50 or 60) Hz;
Maximum power consumption: 4 VA;
Relay outputs:
A1: 2 HP (16 A);
B1: 1 HP (16 A);
C1: 1 HP (16 A);
D1: 1 HP (16 A);
Note: The total relay current must not exceed 21 A;
Measurement range: (-50 to +100) °C;
Resolution:
0.1 °C from (-10 to +100) °C;
1.0 °C from (-50 to -10) °C;
Operating conditions: (0 to 50) °C and (10 to 90) % RH (non-condensing);
Dimensions: (265 × 203 × 111) mm;
Sensors:
NTC: Ø6 mm / L = 15 mm (sensor), standard cable length 1.5 m.

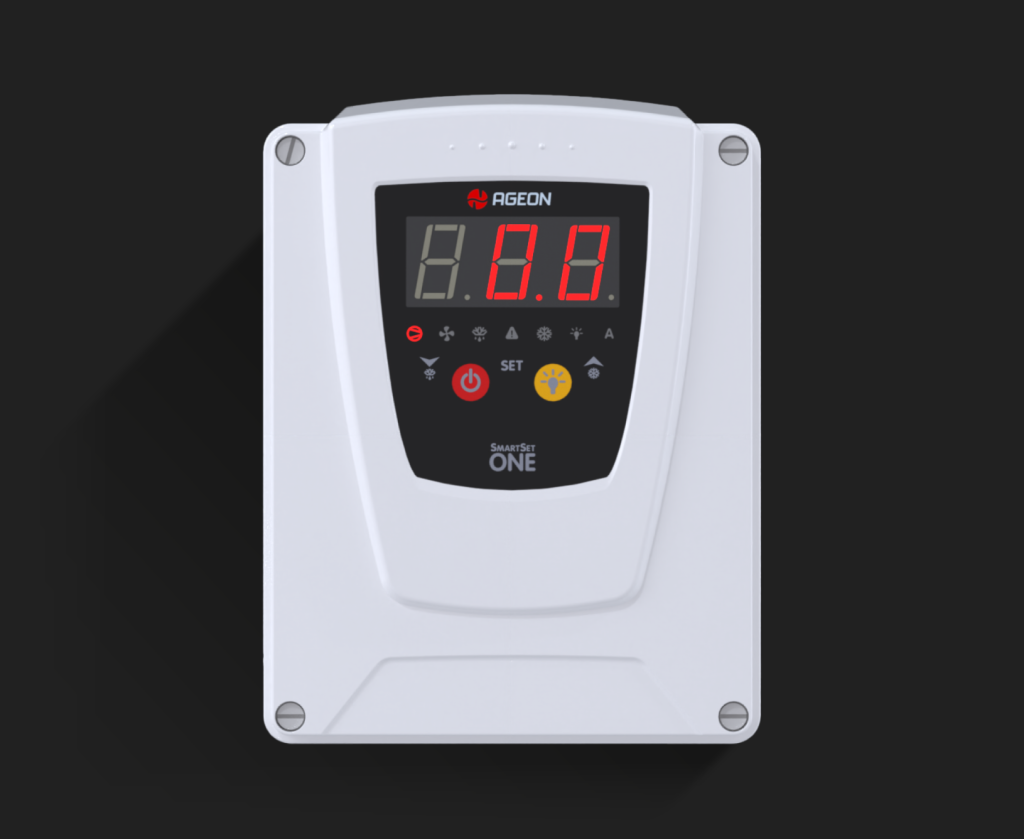

Control panel for cold rooms
SmartSet ONE S106CK WEB is a complete solution for cold rooms, providing precise temperature control, as well as defrost and ventilation management. Featuring audible and visual alarms and internal space for additional protection devices, such as circuit breakers and thermal overload relays, it ensures the safety and efficiency of your system while simplifying monitoring and maintenance.

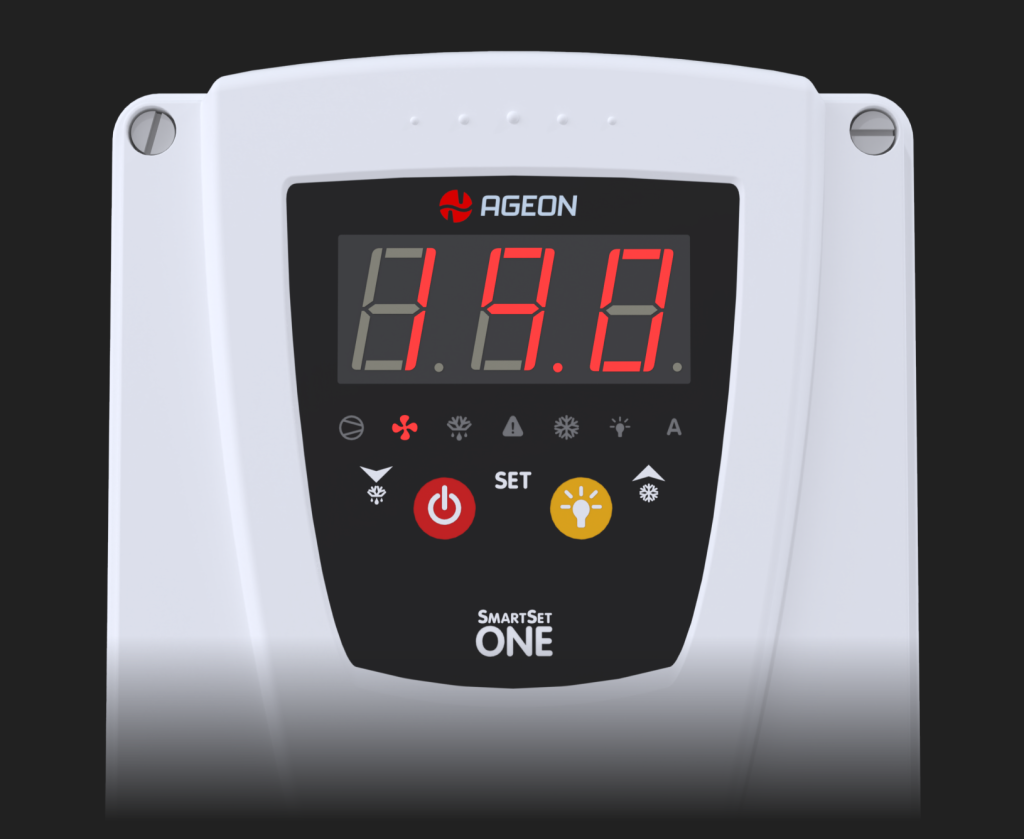

30 mm display
SmartSet ONE S106CK WEB features a 30 mm display for enhanced temperature visibility. Its intuitive interface, with dedicated icons for each function, simplifies configuration and operation, ensuring efficient control of your cold room.
Spacious internal layout for auxiliary components
SmartSet ONE S106CK WEB allows the installation of auxiliary components, eliminating the need for a separate control panel assembly.

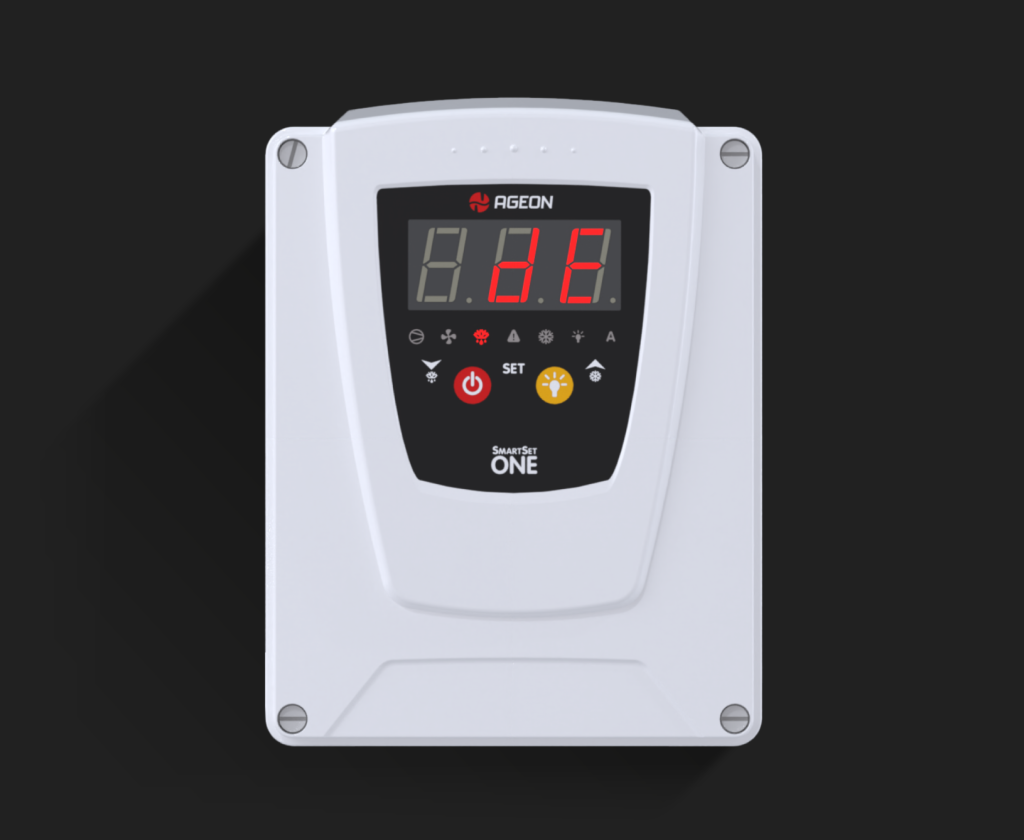

Defrost control
SmartSet ONE S106CK WEB offers programmable defrost, adapting to your application requirements. Choose between natural or forced defrost (electric or hot gas) and set the most convenient schedule, ensuring maximum efficiency and preventing unwanted interruptions.

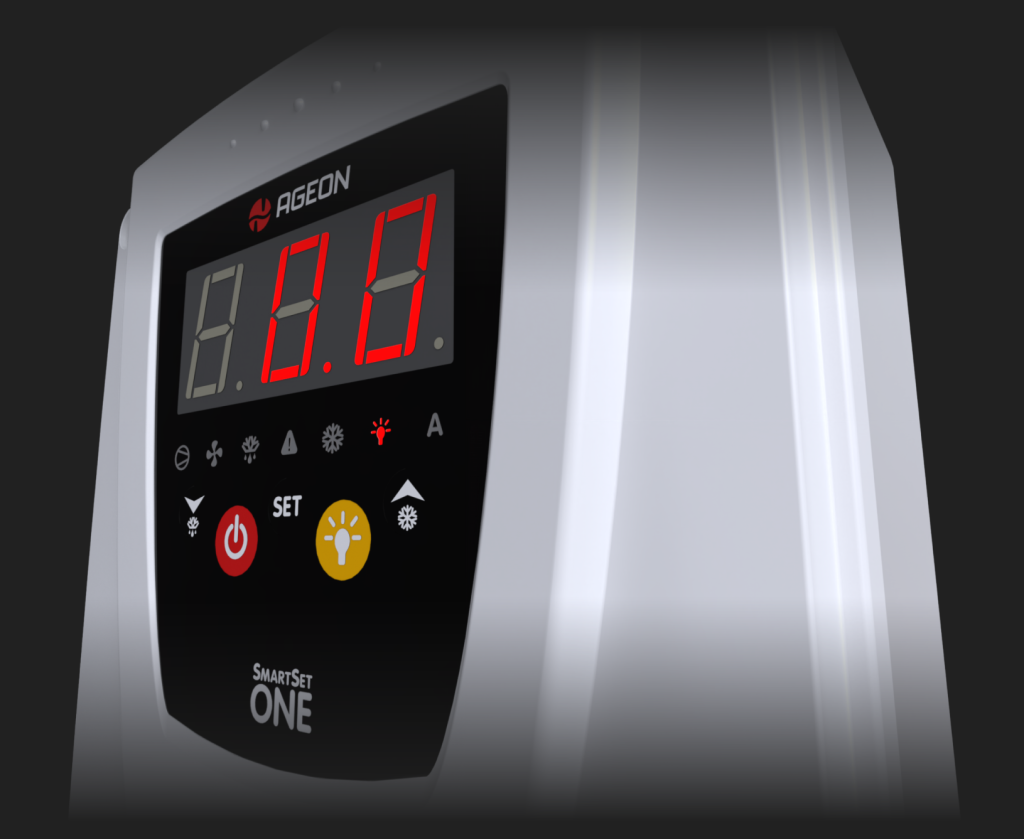

Fan control
Configure how the SmartSet ONE S106CK WEB controls the fans in your cold room. Define when they should operate to ensure maximum efficiency for each application.

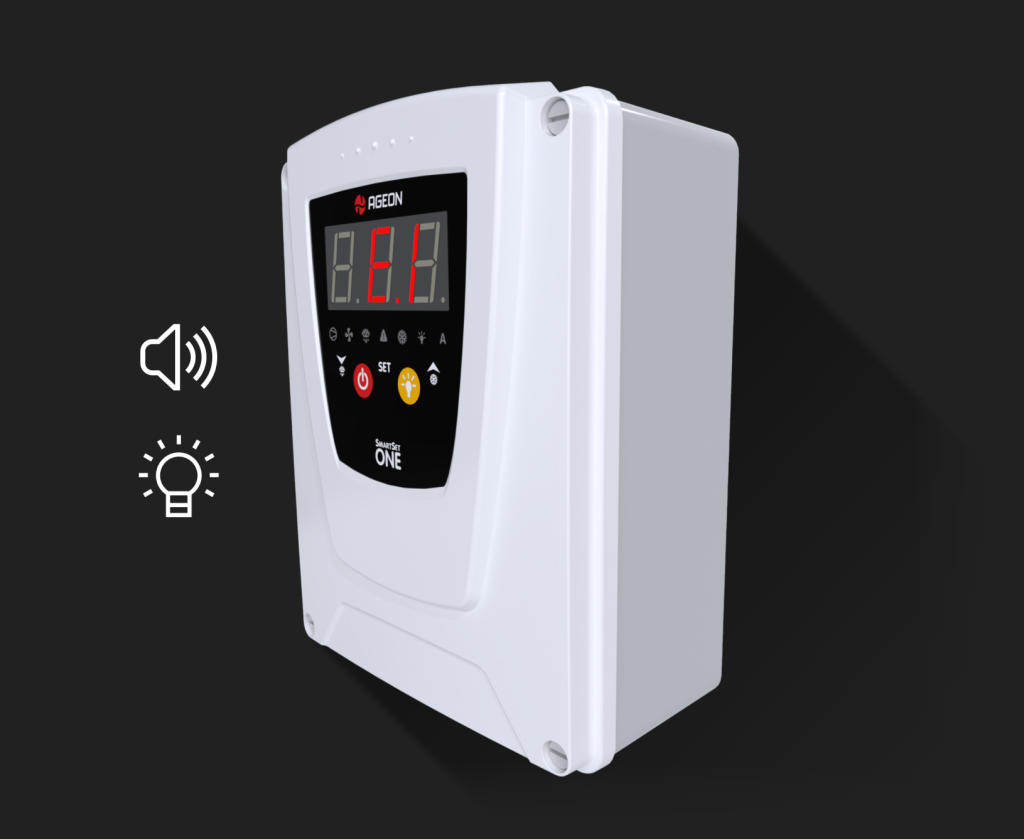

Audible and visual alarms
When errors or inadaquate temperature fluctuation occurs, a sound and a visual alarm are activated.
Frequently asked questions
The SmartSet ONE S106 is an advanced controller for refrigeration systems and cold rooms. It features an integrated enclosure, allowing installers to assemble the electrical panel in a practical and efficient way. Its modern and elegant design, combined with an easy-to-read white LED display, provides not only functionality but also a professional appearance for the installation.
The SmartSet ONE S106 offers a wide range of features, including temperature control, automatic defrost, and electrical protections such as overvoltage and undervoltage protection. It also enables lighting and fan control, optimising the operating environment. In addition, defrost scheduling by day and time ensures energy efficiency by performing defrost cycles at the most suitable moments without compromising system performance.
With the temperature displayed on the screen, press and hold the SET key and use the increase or decrease keys to adjust the setpoint (control temperature). After completing the adjustment, release the keys. The display will return to the measured temperature indication, while the new setpoint will remain active.
Yes, the SmartSet ONE S106 is compatible with the WebFi Pro monitoring system, enabling real-time monitoring. With the WebFi Pro, it is possible to view detailed reports, receive immediate alerts in case of faults or temperature limit violations, and maintain full system control from anywhere, ensuring greater efficiency and safety.
